Specifications

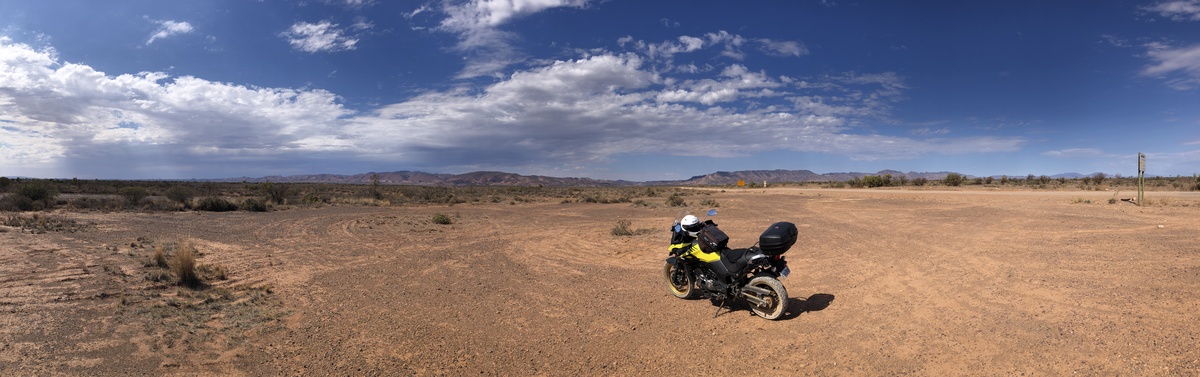

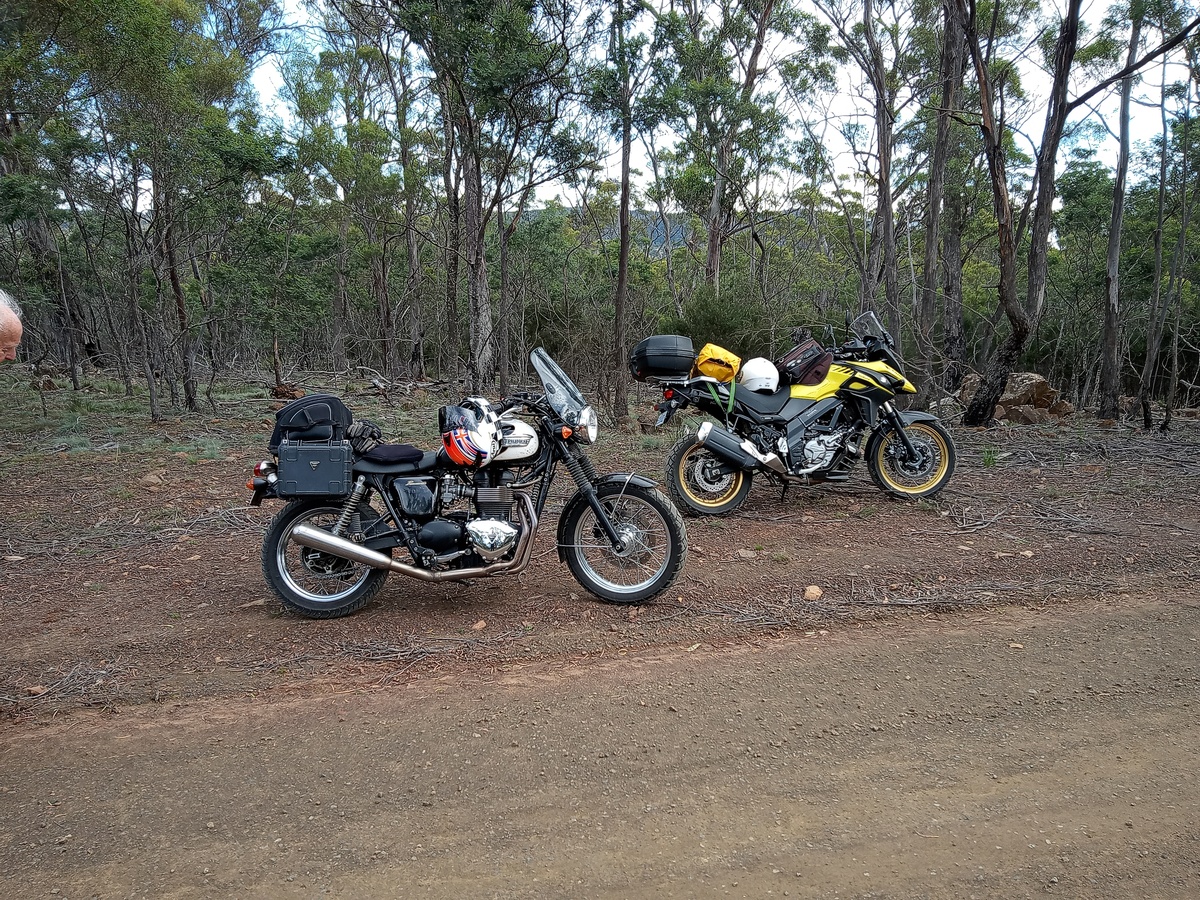

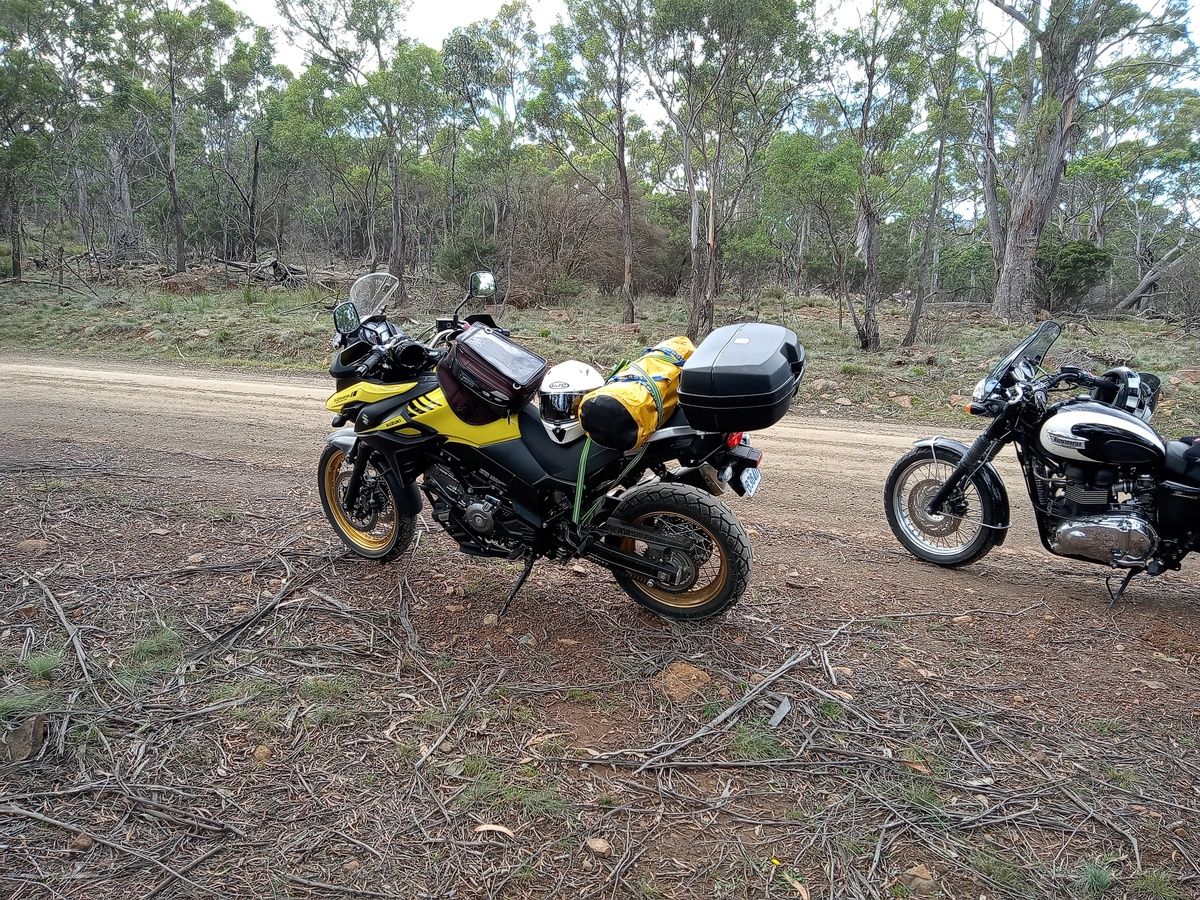

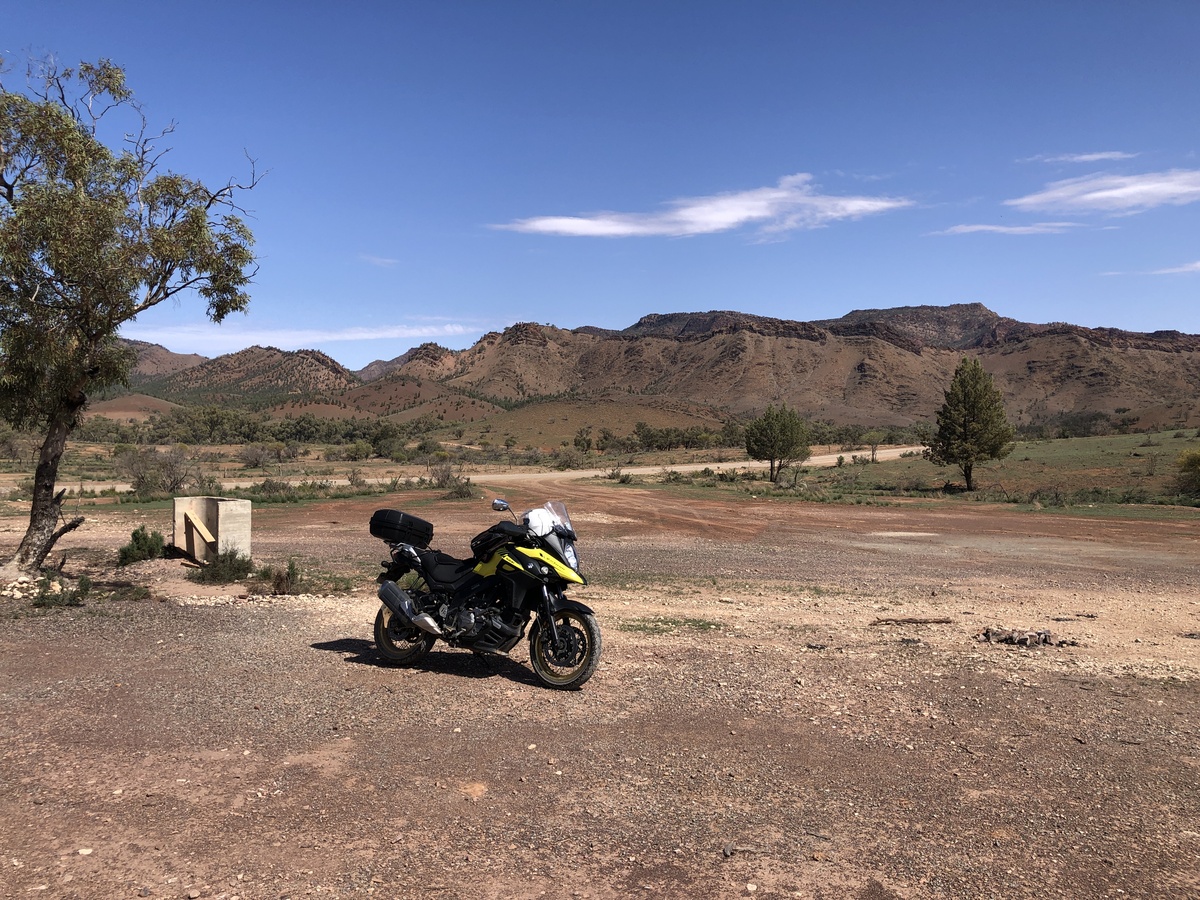

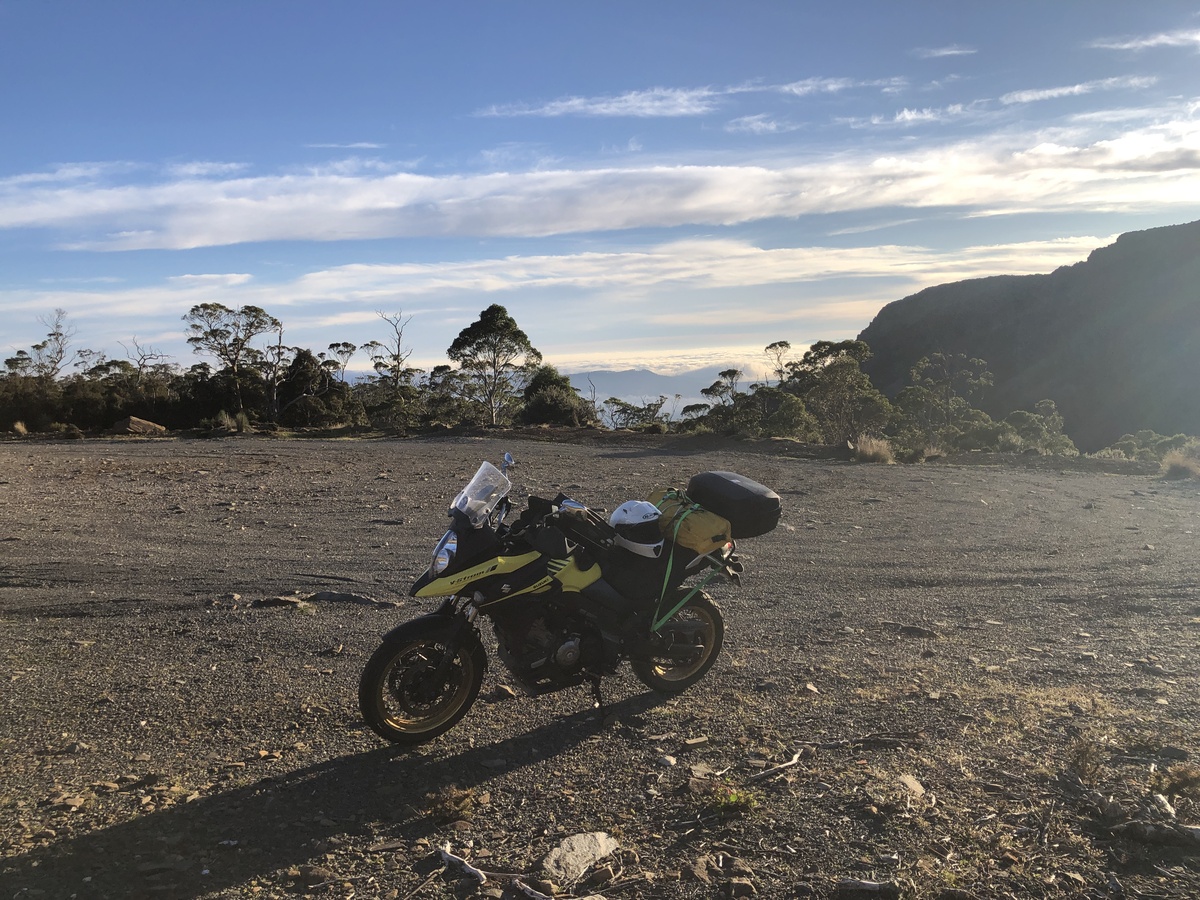

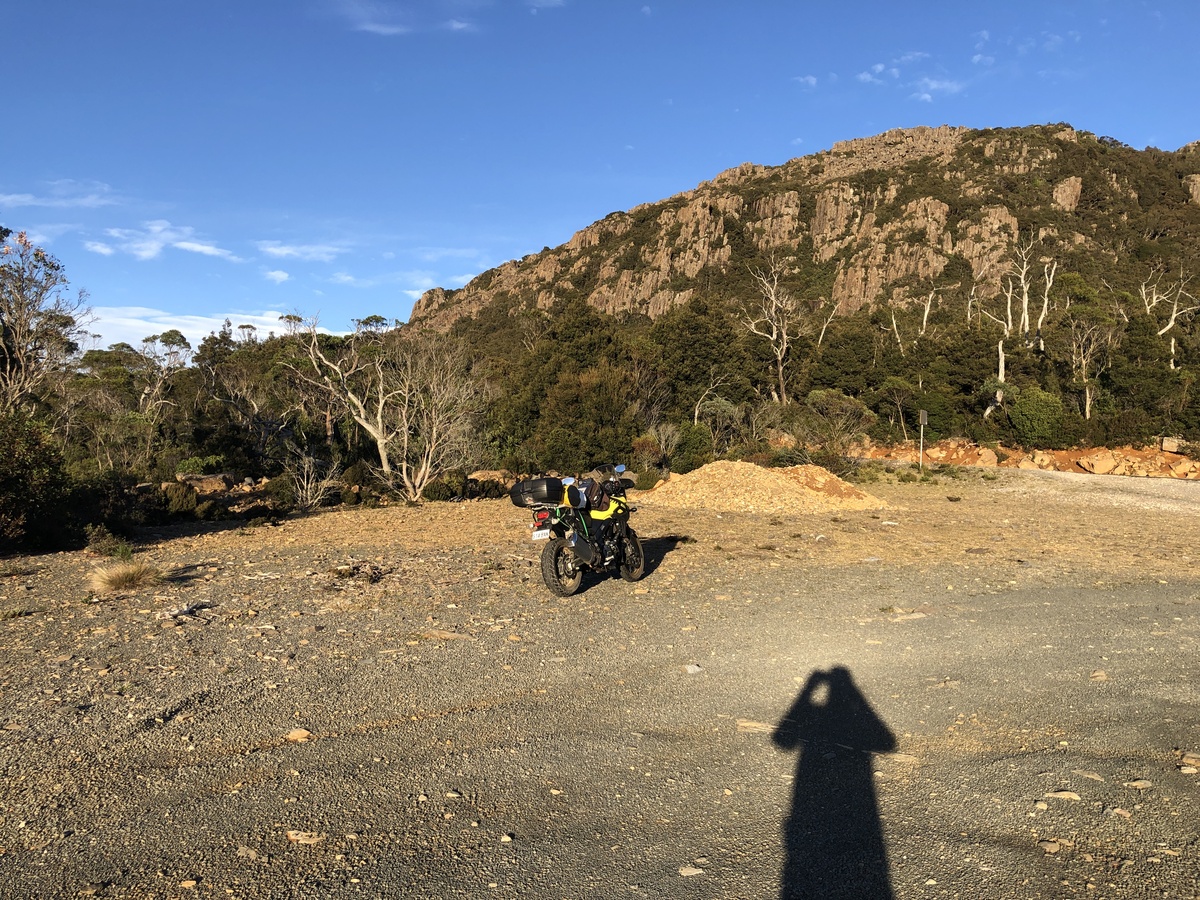

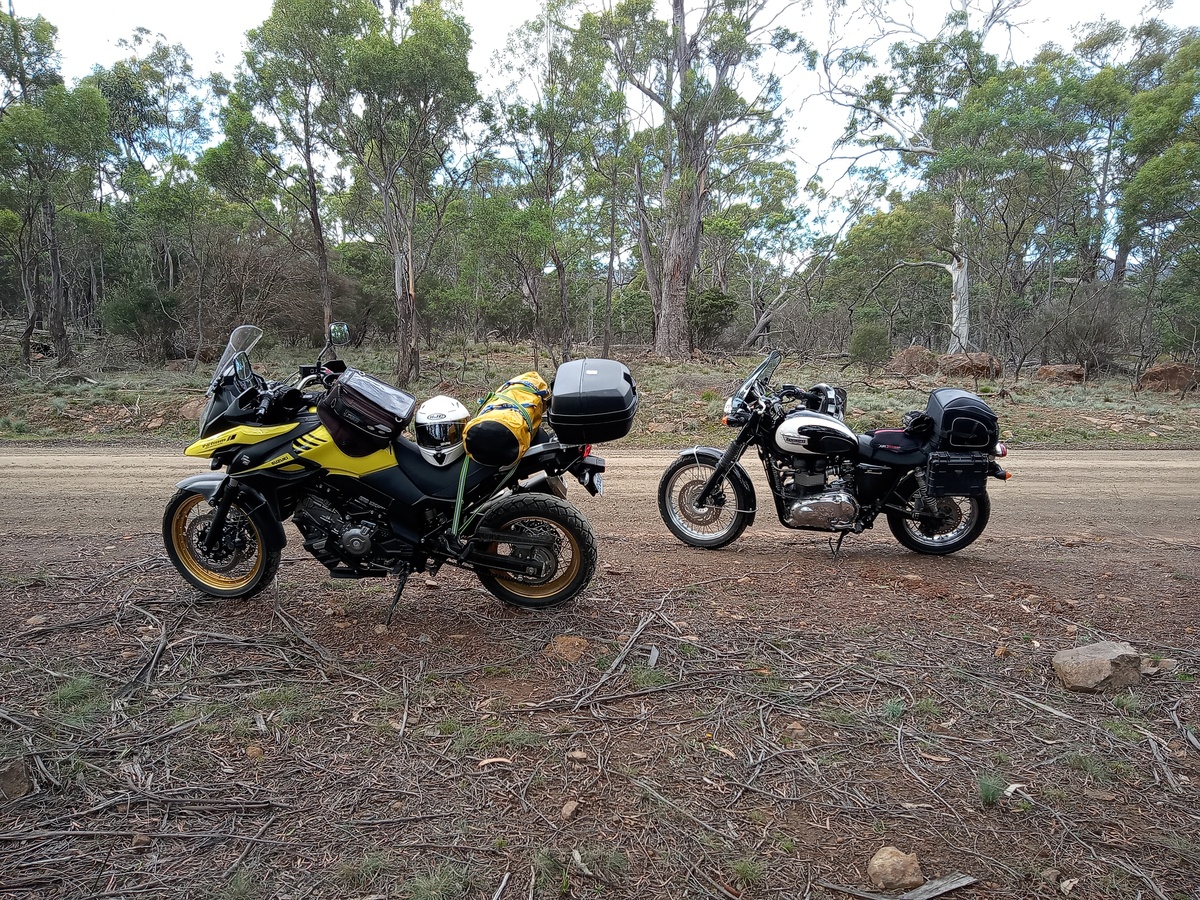

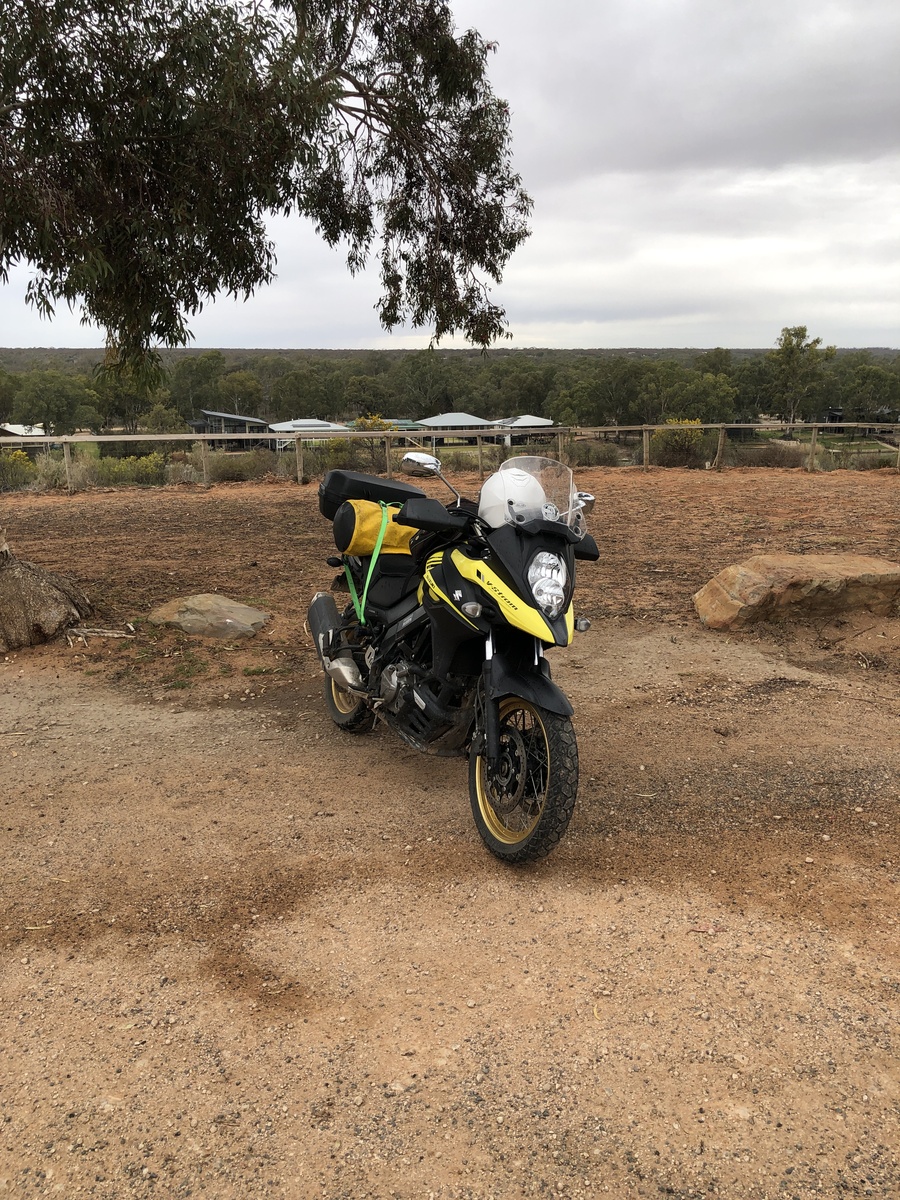

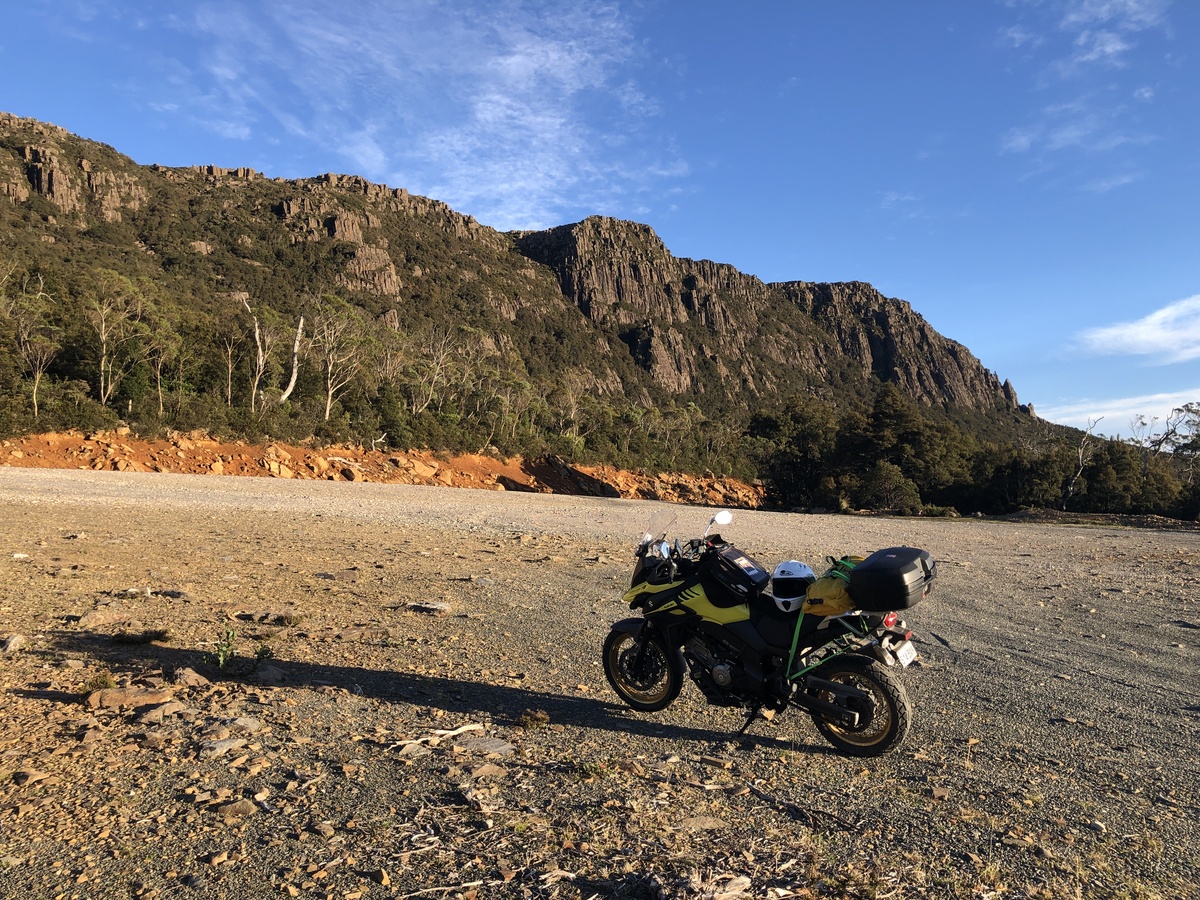

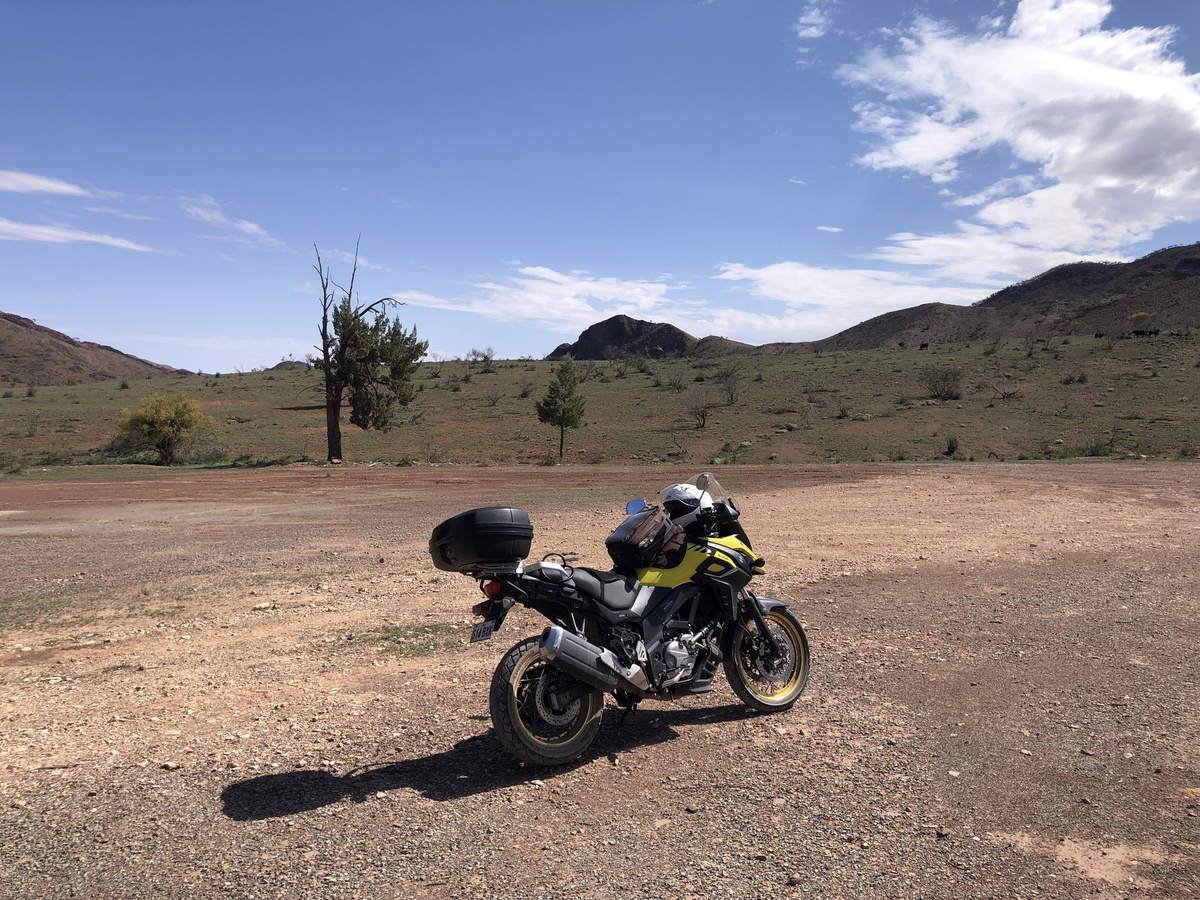

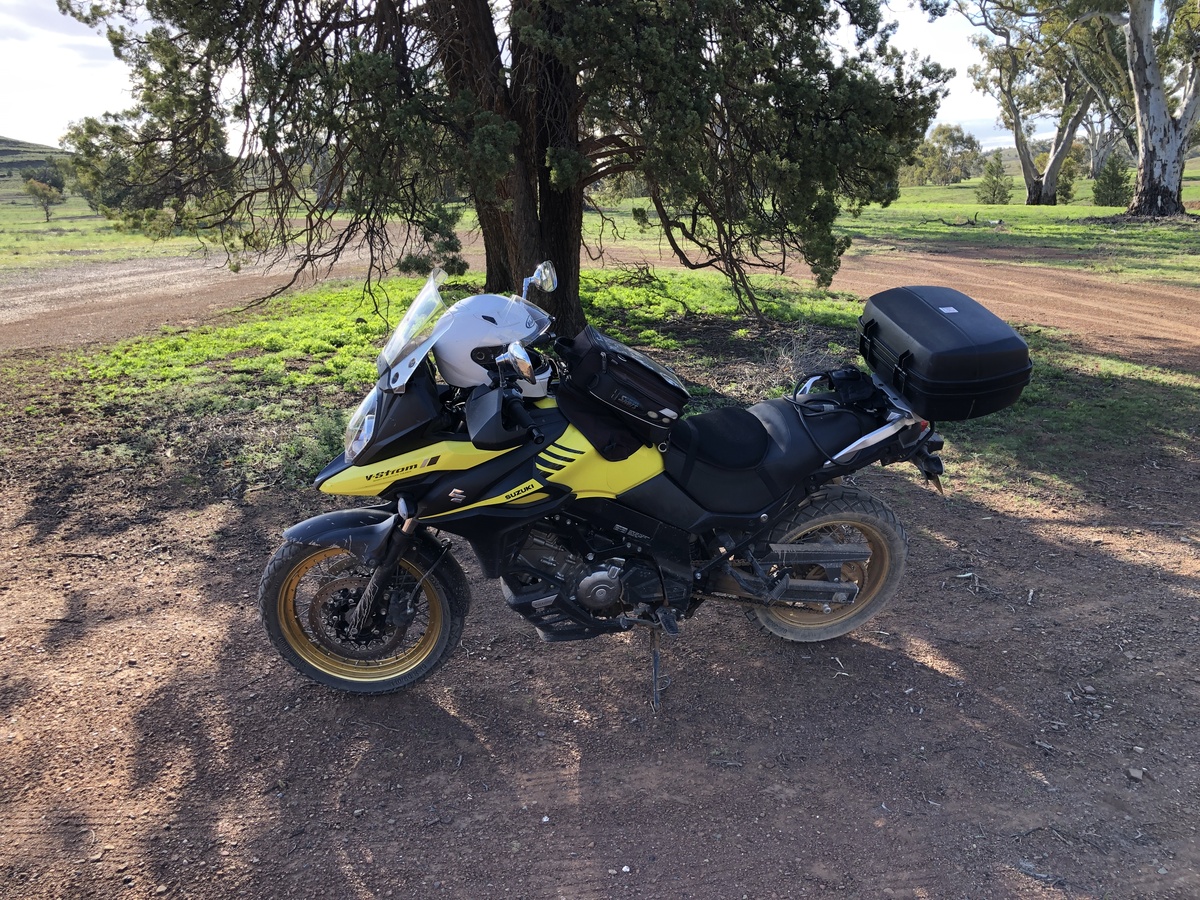

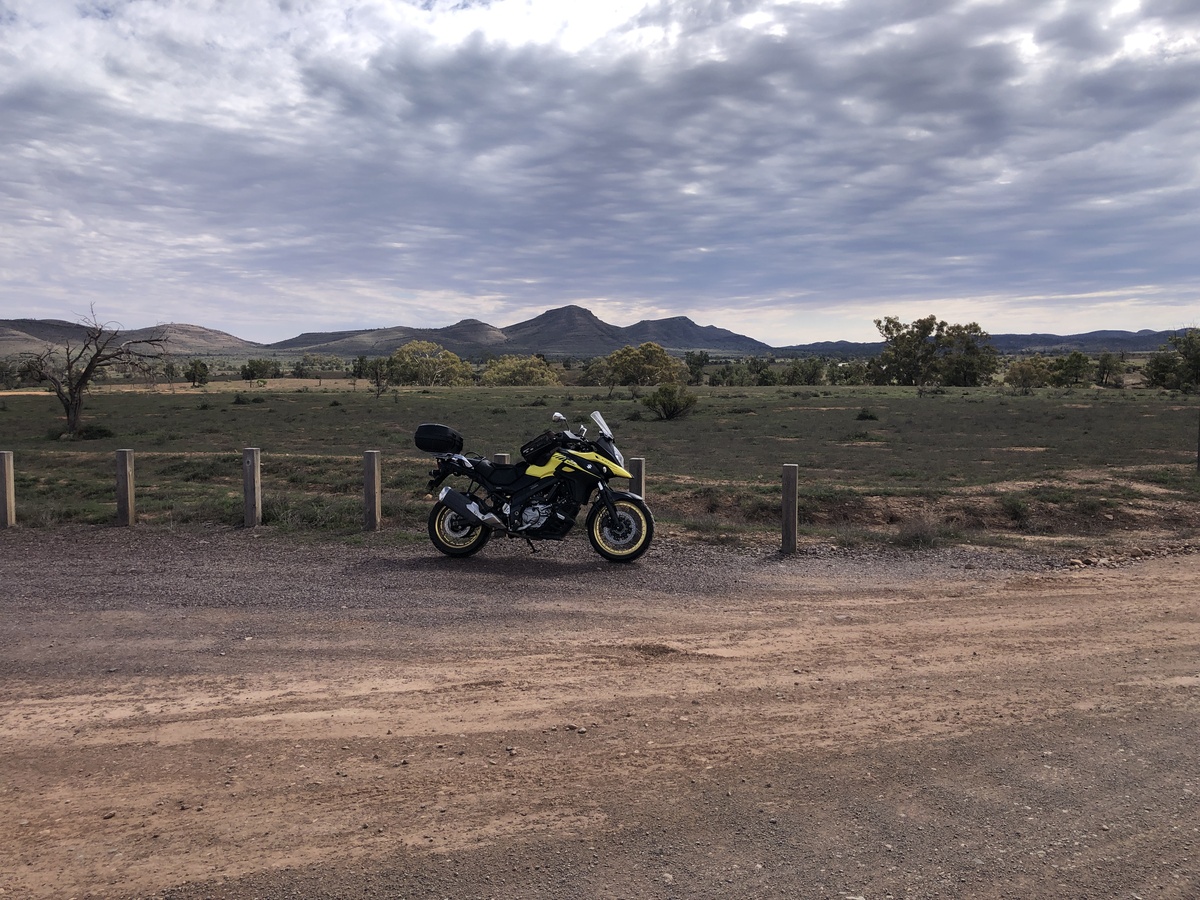

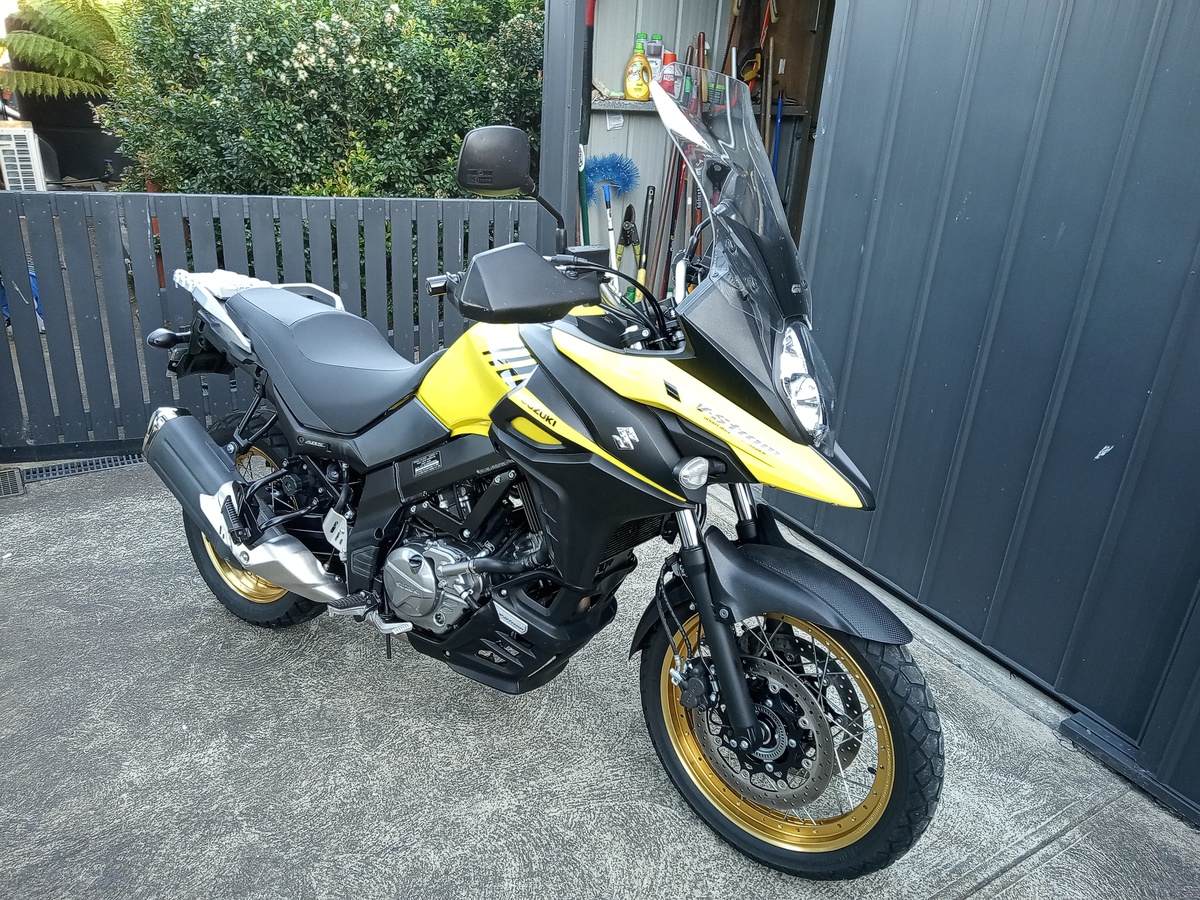

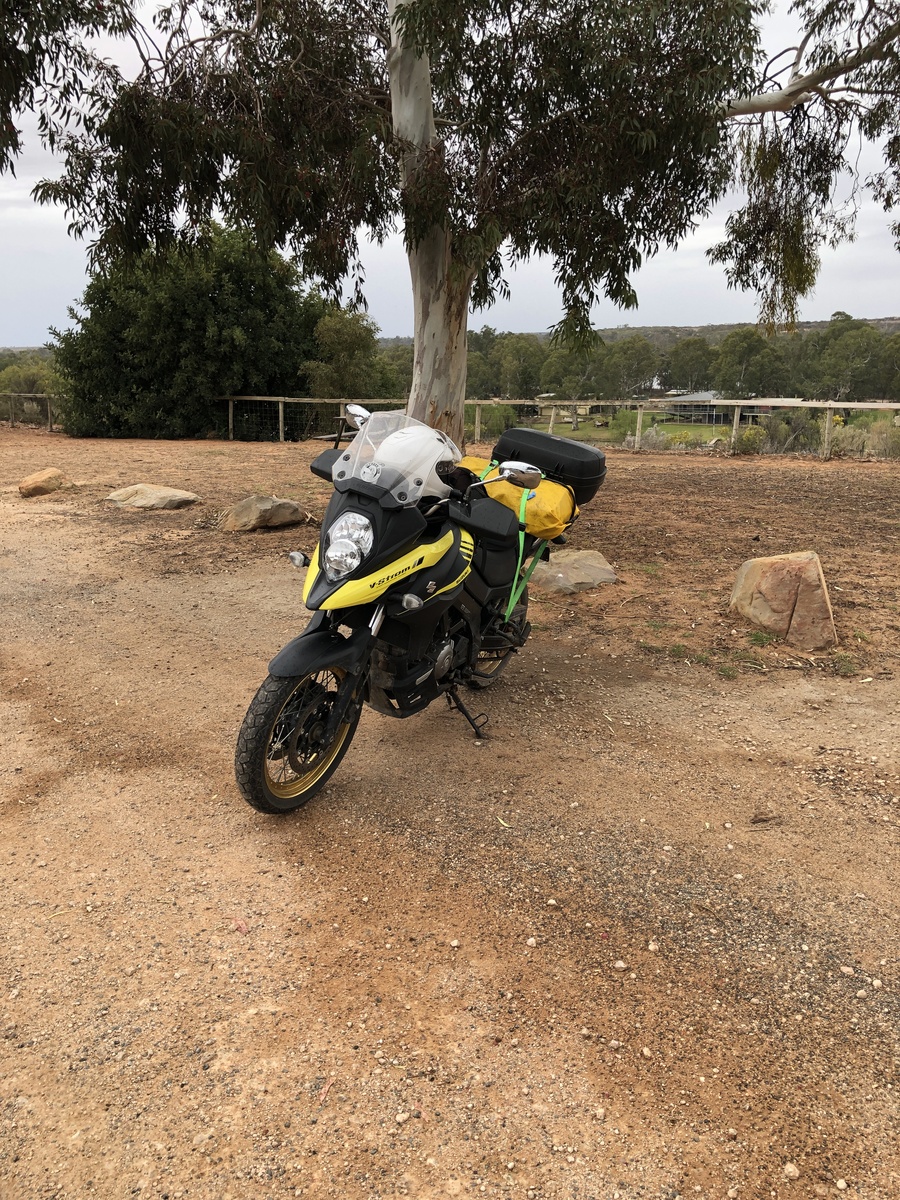

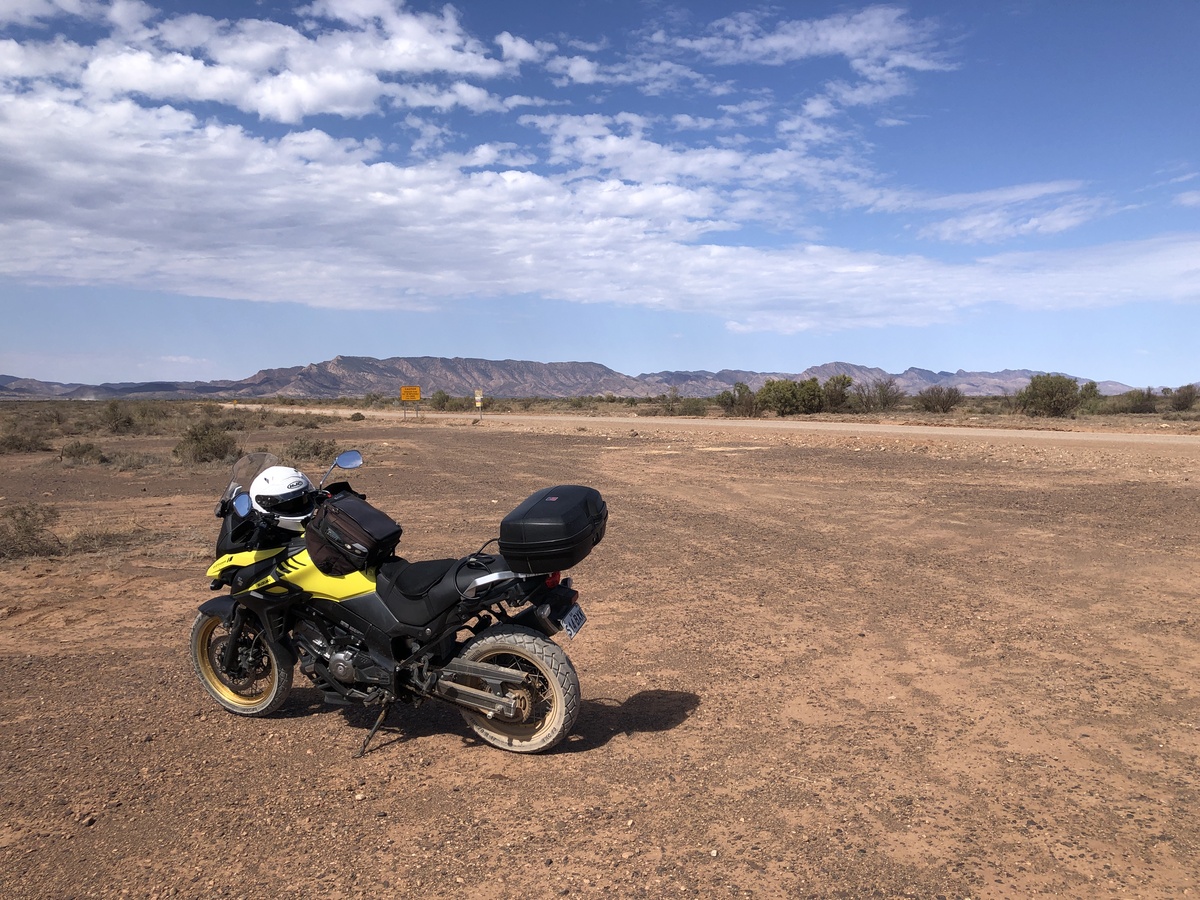

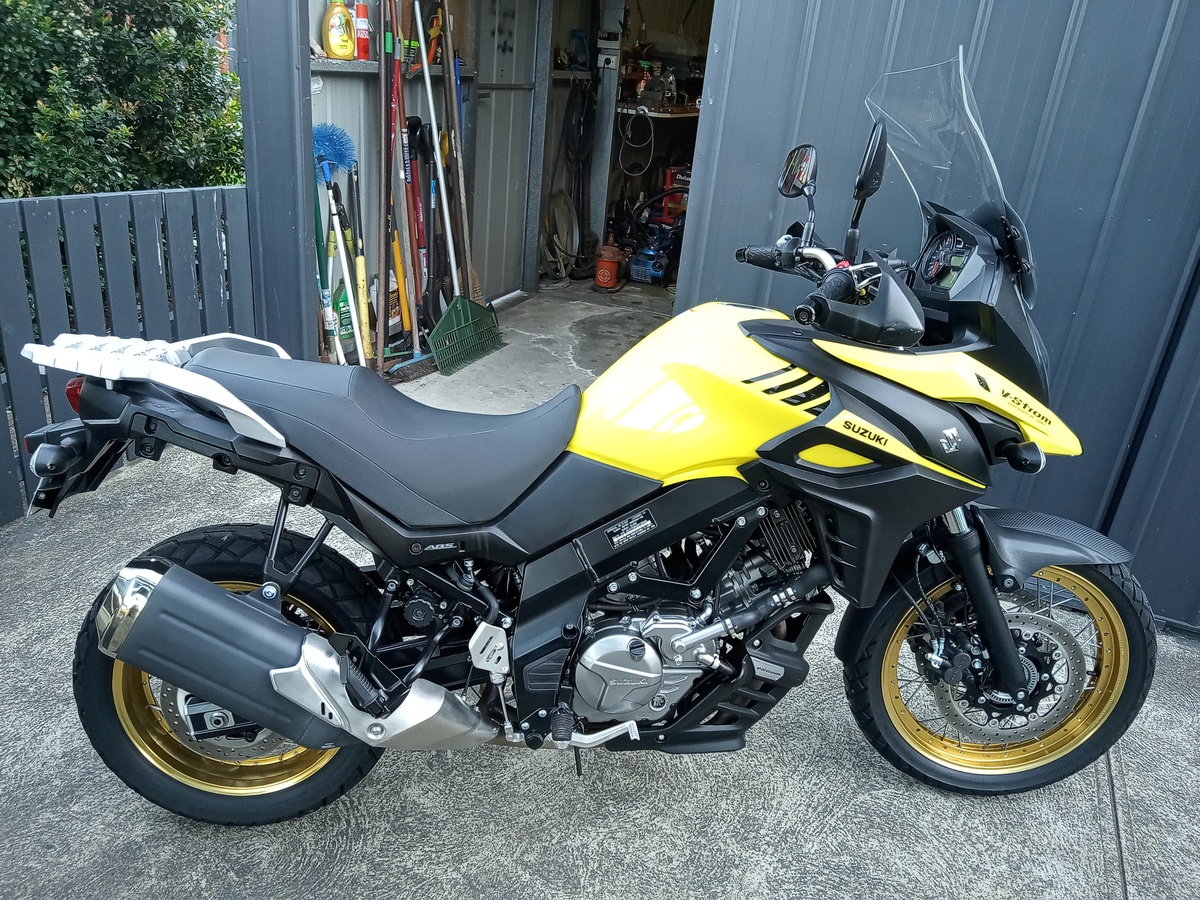

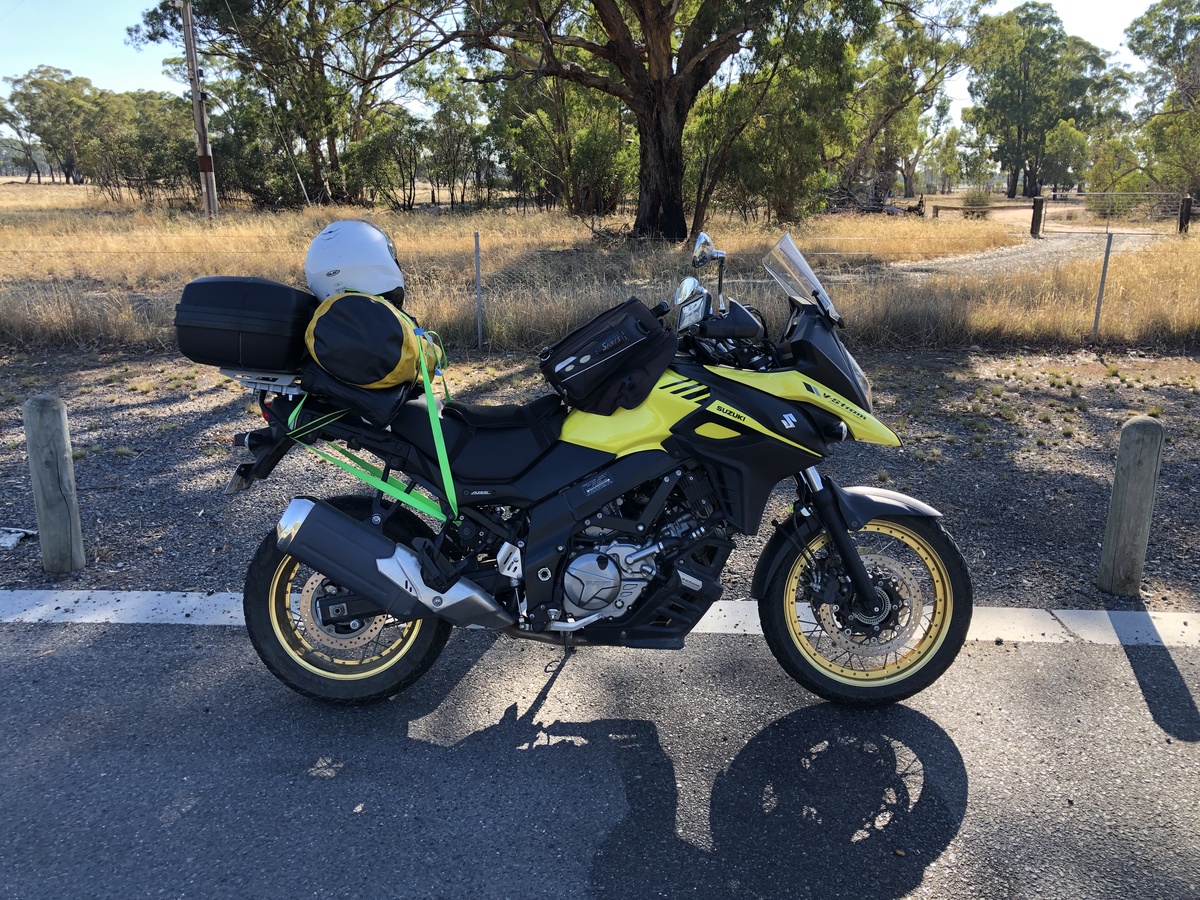

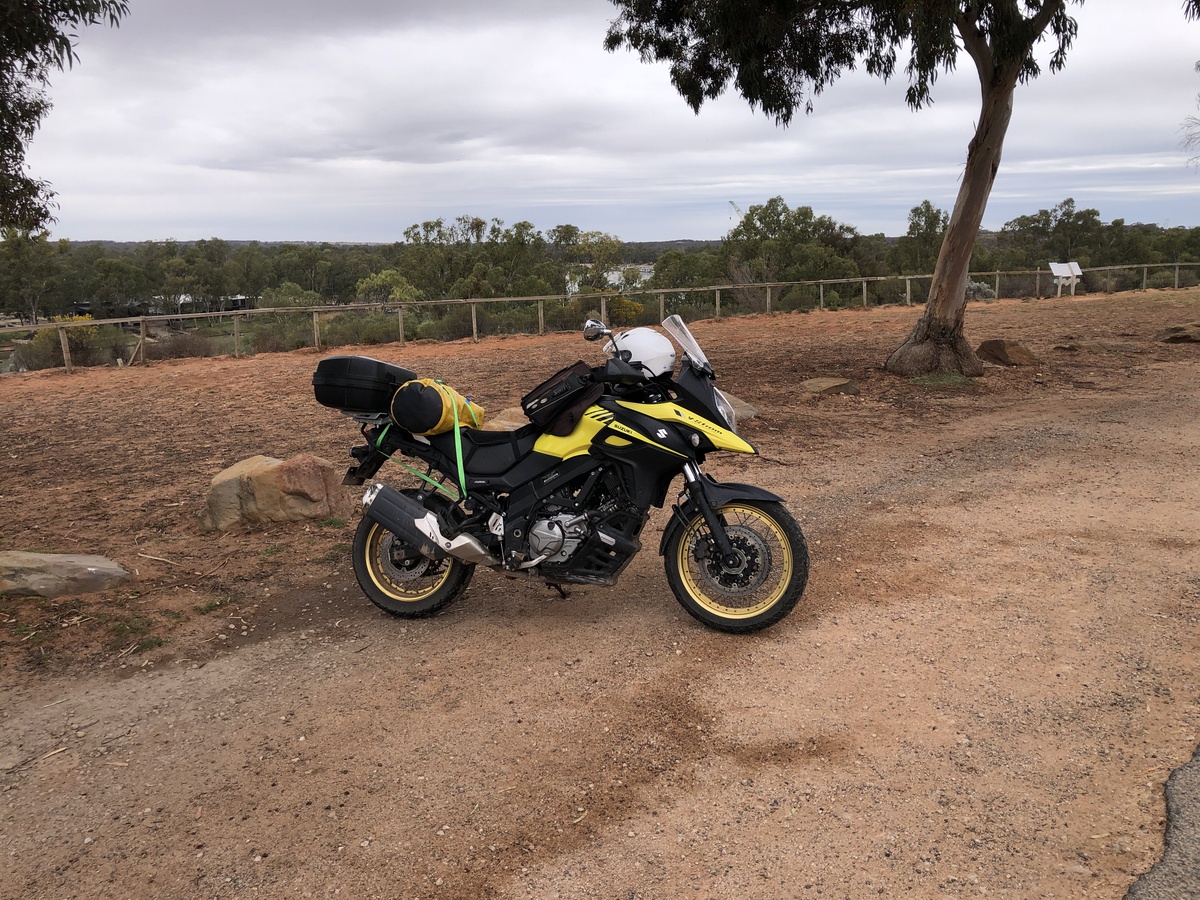

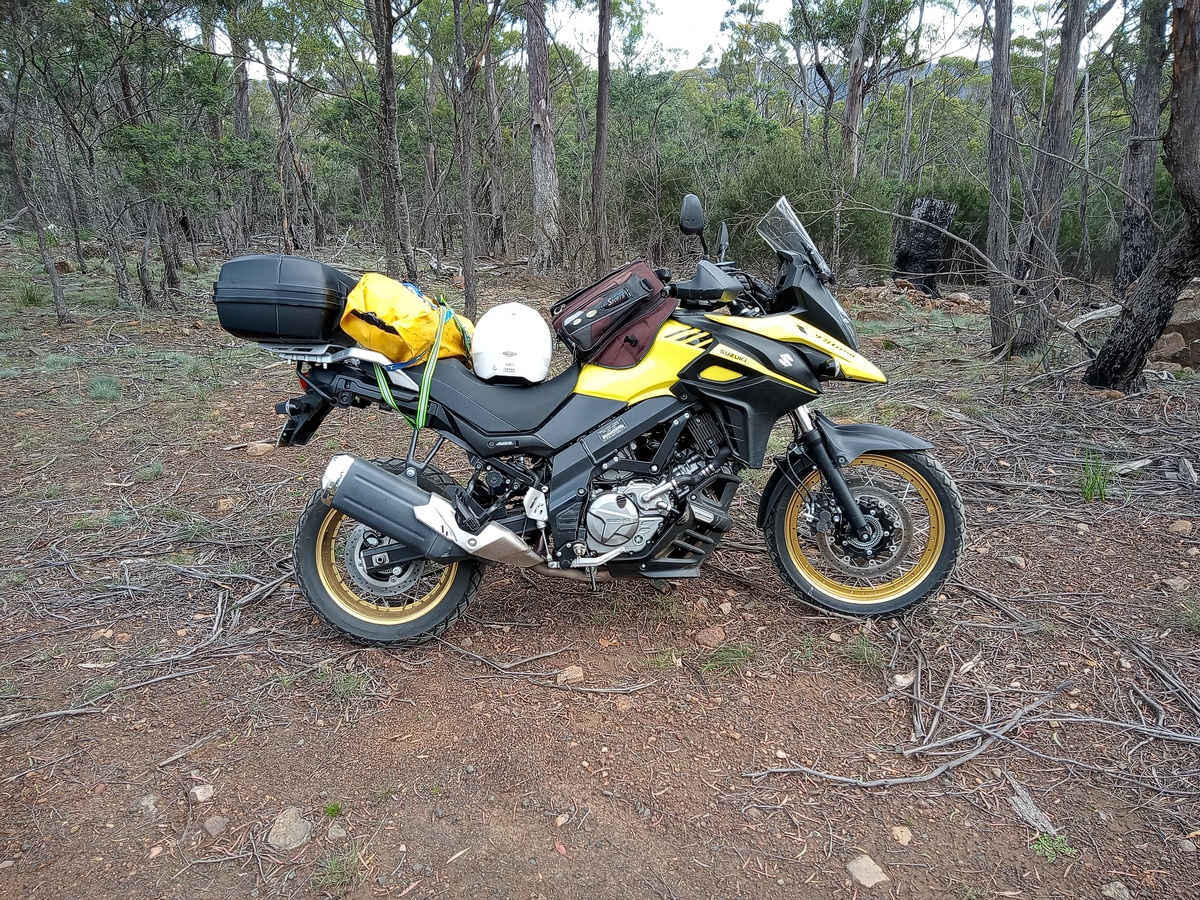

2018 Suzuki DL650XT V-Strom
| Suzuki Global Digital Archive Website: www.globalsuzuki.com | |
| Suzuki Specifications from Moto Data website: www.moto-data.net | |
| Model | DL 650XT V-Strom |
| Years | 2017-18 |
| Engine | Four stroke, 90°-V-twin, DOHC, 4 valves per cylinder. |
| Capacity | 645 cc / 39.4 cu-in |
| Bore x Stroke | 81 x 62.6 mm |
| Compression Ratio | 11.2:1 |
| Cooling System | Liquid cooled |
| Oil Capacity | 3.0 L (3.2 / 2.6 US / Imp qt) |
| Lubrication | Wet sump |
| Induction | Fuel Injection |
| Ignition | Electronic Ignition |
| Starting | Electric |
| Max Power | 69 hp / 50.4 kW) @ 8000 rpm |
| Max Torque | 69 Nm / 50.9 lb-ft @ 6400 rpm |
| Clutch | Wet, multiple discs, cable operated |
| Transmission | 6 Speed |
| Final Drive | Chain, DID525V8, 118 links |
| Primary Reduction Ratio | 2.088 (71 / 34) |
| Final Reduction Ratio | 3.133 (47 / 15) |
| Frame | Aluminium, twin spar |
| Front Suspension | 43mm Telescopic, coil spring, oil damped |
| Front Wheel Travel | 150 mm / 5.9 in |
| Rear Suspension | Link type, with adjustable rebound and spring preload |
| Rear Wheel Travel | 160 mm / 6.3 in |
| Front Brakes | 2 x 310 mm disc, 2 piston calipers, ABS |
| Rear Brakes | Single 260 mm disc, 1 piston caliper, ABS |
| Front Tyre | 110/80R19M/C 59H |
| Rear Tyre | 150/70R17M/C 69H |
| Rake | 26° |
| Trail | 110 mm / 4.3 in |
| Dimensions | Length 2275 mm / 89.5 in Width 910 mm / 35.8 in Height 1405mm / 55.3 in |
| Wheelbase | 1560 mm / 61.4 in |
| Seat Height | 830 mm / 32.7 in |
| Ground Clearance | 175 mm / 6.9 in |
| Wet Weight | 216 kg / 476 lbs |
| Fuel Capacity | 20 Litres / 5.2 US gal / 4.4 Imp gal |
